Stainless Steel Concrete Screw Conveyor

Name: Stainless Steel Concrete Screw Conveyor
Brand: WeSeW
Price: 8 USD

Wholesale Stainless Steel Concrete Screw Conveyor from china suppliers

Brand Name : WeSeW

Model Number : AC0061

Certification : CE,UL

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union

Supply Ability : 500000/Year

Delivery Time : 10-20 working day

Packaging Details : Wooden Case

Price : US$8,000~US$30,000 per pc

Model NO. : AC0061

Material : Stainless Steel

Material Feature : Heat Resistant, Fire Resistant

Application : Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition : New

Applicable Industries : Industry

Machinery Test Report : Provided

Core Components : Motor

Dimension(L*W*H) : Customized

Transport Package : Wooden Box

Specification : Customized

Trademark : WESEW

Origin : China

Package Size : 800.00cm * 60.00cm * 50.00cm

Package Gross Weight : 150.000kg

After-sales Service : Provided

Warranty : 1 Year

Structure : Conveyor System

Customization : Available Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now

OEM Custom Stainless Steel Auger Conveyor Machine For Cement

Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Farms
Structure	Other
Warranty	1 Year
Machinery Test Report	Provided
Core Components	Motor, Other, Bearing, Gear, Gearbox
Applicable Industries	Customize
Width or Diameter	Customize
Condition	New
Power	1.5 KW
Video outgoing-inspection	Provided
Material	Stainless Steel, SUS304/316
Machinery Test Report	Provided

Product Description:
Shaftless screw conveyor is a kind of machine for conveying goods. Compared with the traditional shafted screw conveyor, it adopts the design of no central shaft and uses the integral steel screw with certain pumping properties to push materials, so it has the following outstanding advantages: Strong anti-winding.

Product Structure:

1. Polymer wear-resistant and high-temperature resistant liner;

2. Thickened non-pumping 16 managanese steel blades;

3. Shaft connection thickened round tube fixed;

4. Reinforced concave-convex flange double-layer reinforcement;

5. All copper core motor;

6. Guomao reducer.

Product Features:
Shaftyless screw conveyor is mainly composed of driving device, head assembly, casing, shaftless screw body, tank lining plate, feeding port, discharging port, cover (when necessary), base and so on.
Driving device: When using a cycloidal pinwheel reducer or a shaft-mounted hard-tooth surface gear reducer, the driving device should be set at the end of the discharge port as much as possible, so that the screw body is in a tension state during operation.
The head is equipped with a thrust bearing, which can bear the axial force generated when conveying materials.
Chassis: The chassis is U-shaped or O-shaped, with a rain-proof cover on the upper part, and the material is stainless steel or carbon steel or FRP.
Shaftless Spiral: The material is stainless steel or carbon steel.
Tank liner: The material is wear-resistant plastic plate or rubber plate or cast stone plate, etc.
Inlet and outlet: There are two kinds of square and round. Generally, the form of inlet and outlet is determined by the use of household decision.

Scope Of Application:
Shaftless screw conveyors have been widely used in various sectors and industries of the national economy, such as building materials, metallurgy, chemical industry, electric power, coal, machinery, light industry, grain and food industries; suitable for conveying powder, granular, small block materials, such as cement, pulverized coal, grain, fertilizer, ash, sand, coke, etc.

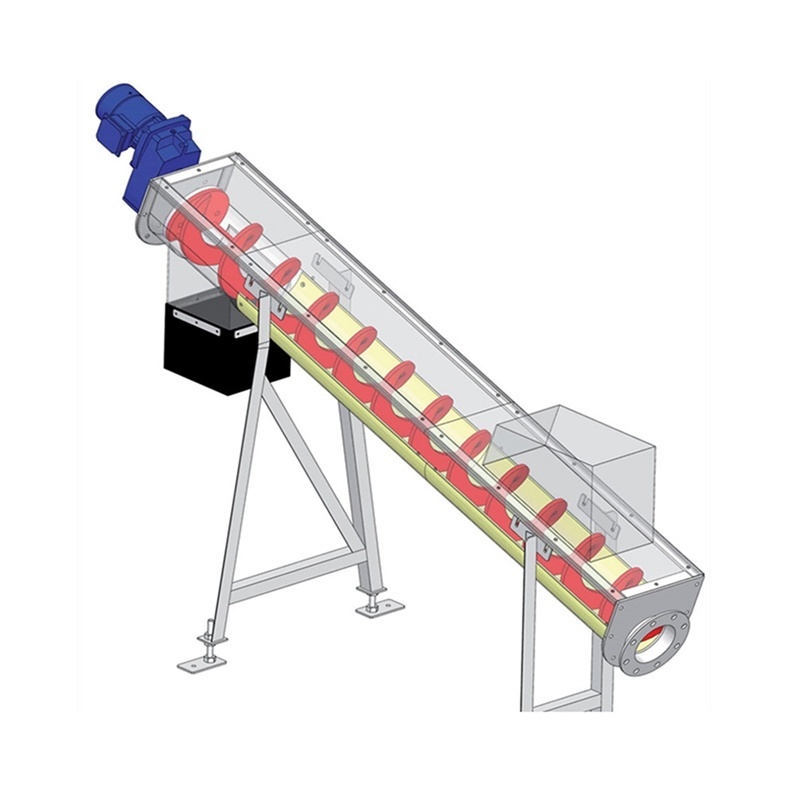

Drawing:
