Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

MOQ : 1 pc

Price : US$800~US$8,000 per pc

Supply Ability : 500000/Year

Delivery Time : 20~35 working day

Packaging Details : Wooden Case

Model NO. : AC0067

Material : Stainless Steel

Material Feature : Heat Resistant, Fire Resistant

Application : Chemical Industry, Grain Transport, Mining Transport, Power Plant

Condition : New

Product Name : Tube Flexible Spiral Screw Auger

Applicable Industries : Industry

Machinery Test Report : Provided

Core Components : Motor

Dimension(L*W*H) : Customized

Transport Package : Wooden Box

Specification : Customized

Trademark : WESEW

Origin : China

Package Size : 100.00cm * 100.00cm * 300.00cm

Package Gross Weight : 50.000kg

After-sales Service : Provided

Warranty : 1 Year

Structure : Conveyor System

Customization : Available Customized Request

Shipping Cost : about shipping cost and estimated delivery time.

Currency : US$

Return&refunds : You can apply for a refund up to 30 days after receipt of the products.

Contact Now


Product Description

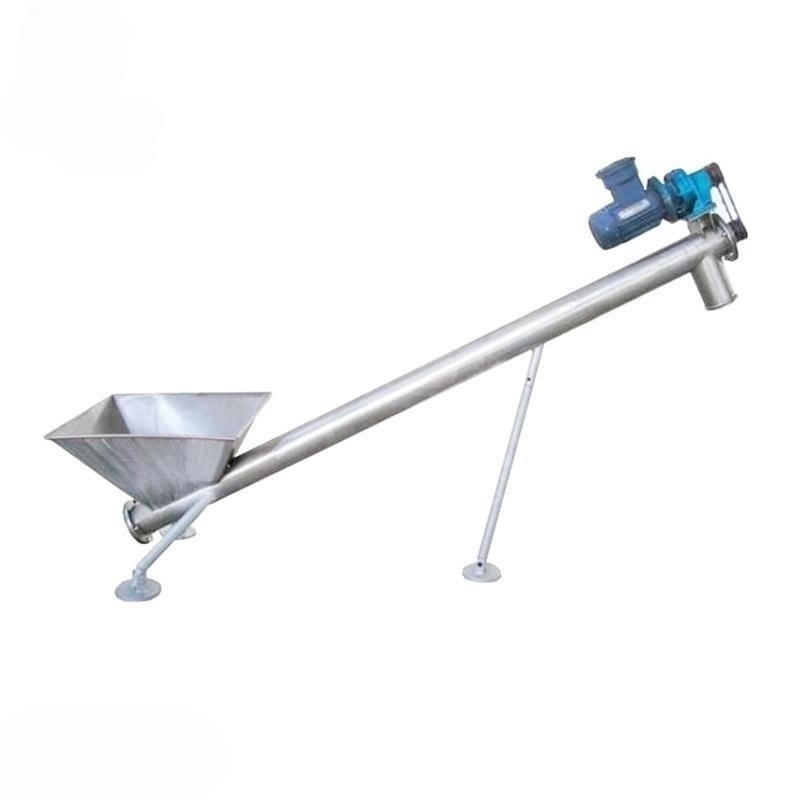

OEM Custom Stainless Steel Tube Flexible Spiral Screw Auger Conveyor with Hopper

Condition New
Material Feature Heat Resistant
Voltage 440V/380V/220V optional
Dimension(L*W*H) As your requirment
After-sales Service Provided Video technical support
Customization Accept
Material Stainless steel, Stainless steel screw conveyor
Structure Inclining Conveyor
Warranty 1 Year
Capacity 1~4m
Discharge port heigh 1200~1600mm
Discharge diameter 2 inch
Rotate speed 14~35r/min
Instruction Viedo

Product Description:
Factory price stainless steel tube flexible spiral screw conveyor with hopper are of simple, relatively low cost construction compared to other conveyor systems. Stainless Steel Screw Conveyor consist of a helical flight fastened around a pipe or solid shaft, mounted within a tubular or U-shaped trough. As the screw rotates,material heaps up in front of the advancing flight and is pushed through the trough.
Particles in the heap next to the flight surface are carried part way up the flight surface, and then flow down on the forward-moving side of the heap. Products can be conveyed and elevated at the same time by mounting a screw conveyor at an incline. This is often desirable because it covers two operations with one piece of equipment therefore saving space and reducing downtime,maintenance cost, etc.
A standard screw conveyor will often operate normally at angles up to 15º with only a small loss in capacity. Beyond that, adjustments and/or modifications are typically necessary.

Advantage:
Tighter clearance between the screw and trough: This is especially true with granular,free flowing products such as dry, refined sugar.
Higher screw speed: This increases the product's forward momentum and reduces fallback.
Shorter pitch screw flighting: This improves the relative angle between the each flight and the conveyed product.
Use of tubular trough or shrouds: Both act in the same way to surround the screw and prevent product from falling back over the top which tends to occur more as speed is increased.
1.Economical
2.Low maintenance
3.Multiple discharge locations
4.Easy to install
5.Quiet operation
6.No return run
7.Multiple configurations and applications
8.Various materials of construction
9.Can operate on inclines
10.Sanitary construction is available
11.Readily available / minimal lead times
12.Screw feeder for volume control
13.Standardization of parts


Product Display

Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

Related Products

Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

Certifications

Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

Company Profile


Guangzhou Kaixi Wisdom Valley Technology Co.,Ltd was established in 2005. "Kaixi makes and serves the whole world" is the common pursuit and goal of all Kaixi people. Our company will honor our promise to customers with the business philosophy of "better technology, higher quality and better service", and make Kaixi manufacturing become the benchmark of Chinese manufacturing and go global! Welcome people from all walks of life to visit our company for on-the-spot investigation and negotiation.

Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor FeederTube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

We are factory and doing traditional export business more than 15 years!
If you have any demand for our products, please feel free to contact me.

Packaging & Shipping

Tube Flexible Spiral Screw Conveyor Feeder Easy To Operate Screw Conveyor Feeder

FAQ


Q1: Are you trading company or manufacture?
A: We are metal factory only for oversea trading.

Q2: How long is your delivery time?
A: Generally 5~10 days for sample.and 20-40 days for mass production. it is depends on order quantity.

Q3: Do you provide samples?Is it free or extra?
A: Yes, we could offer the sample for free charge once customer place batch order.

Q4: What is your terms or payment?
A: Payment<1000USD shall be 100% T/T in advance. Payment>USD1000, 50% T/T in advance, pay balance before shippment.

Q5: Can you produce order and according to the samples?
A: Yes, we can produce by your samples .

Q6: How to get the quote ?
A: Please send your 3D drawings(PDF,STP, IGS, STL...) to us by email with the material, surface treatment and QTY, then offer the best price for you within 12 hours.

Q7: What are your shipping way?
Sample order: by air freight with 7-15 days.
Batch order: by sea ship( or by train to Europe) with 30-40 days.
